Dial Reading Viscometer

Dial Reading Viscometer

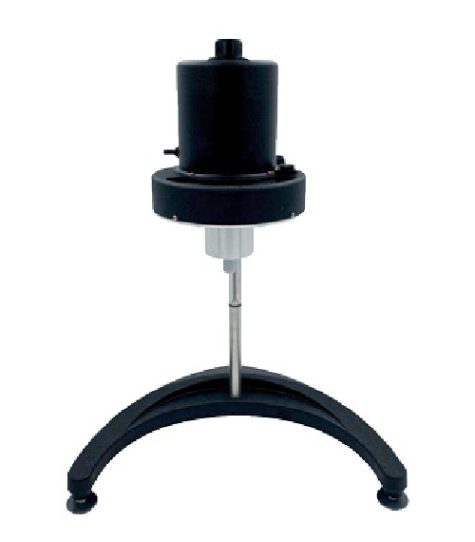

The original Brookfield Dial Reading Viscometer. Current units have been been improved with a multi-speed electronic drive and ergonomically designed speed control knob so selection of any one of the 10 pre-set speeds (8 speeds on LVT models) is quick and easy.
Category:

Description

The original Brookfield Dial Reading Viscometer, a global lab standard since 1934, now features a multi-speed electronic drive, ergonomic speed control, and universal power supply for versatile, quiet operation.

FEATURES Dial Reading Viscometer

  • Continuous torque sensing capability
  • Torque measurement accuracy: 1% of full scale range
  • Repeatability: 0.2% of full scale range
  • Easy speed adjustment and on/off control
  • Compatible with all Brookfield accessories
  • NIST traceable viscosity standards available
  • Electronic drive means quiet, reliable operation
  • Traditional Brookfield quality

SPECIFICATIONS

VISCOSITY RANGE cP(mPa·s) SPEEDS
MODEL Min. Max. RPM Number of Increments
LVT 1 † 2M .3-60 8
RVT 100 †† 8M .5-100 10
HAT 200 †† 16M .5-100 10
HBT 800 †† 64M .5-100 10

† 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles.
††Minimum viscosity is achieved with optional RV/HA/HB spindle.
M=1 million cP=Centipoise mPa·s=Millipascal·seconds

SPRING TORQUE

SPRING TORQUE
MODEL Dyne-cm Milli Newton-m
LVT 673.7 0.0673
RVT 7,187.0 0.7187
HAT 14,374.0 1.4374
HBT 57,496.0 5.7496

† 1 cP achieved with UL Adapter accessory.  15 cP on LV with standard spindles.
††Minimum viscosity is achieved with optional RV/HA/HB spindle.
B=1 Billion     M=1 million     cP=Centipoise     mPa·s=Millipascal·seconds
