Description

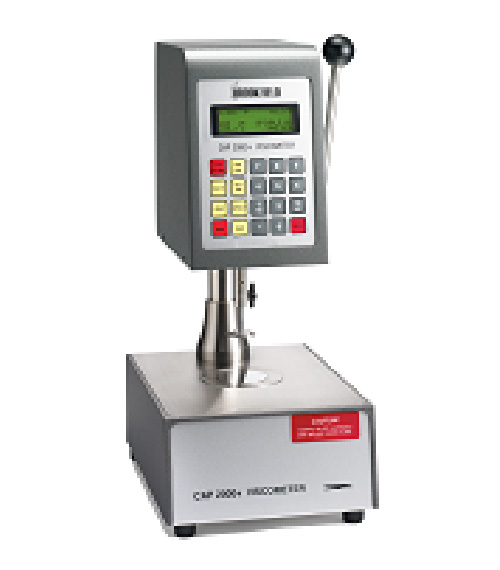

FEATURES CAP2000 Viscometer
- Controls test parameters with powerful scripting capabilities
- Looping functions for repetitive tasks
- Automates data collection to save time
- Reduces operator error
- Math modeling for yield stress calculations, plastic index
- Plot up to four data sets for comparisons
SPECIFICATIONS
| MODEL SELECTION: CAP 2000+ Viscometer | ||||
| Viscosity Range | SPEEDS | |||
| MODEL | Min. | Max. | RPM | Number of Increments |
| CAP 2000+ | See chart below | 5-1000 | 995 | |
| CAP 2000+ HIGH Torque Cone Viscosity Ranges (Poise) Spindles 01-05 | |||||
| Cone Spindle:Sample Volume ( μ L) :
Shear Rate (sec-1): |
CAP01
67 13.3N |
CAP02
38 13.3N |
CAP03
24 13.3N |
CAP04
134 3.3N |
CAP05
67 3.3N |
| CAP 2000+ @ 5-1000 rpm | .2-375 | .4-750 | .8-1.5k | 1-3K | 3-6k |
| CAP 2000+ LOW Torque Cone Viscosity Ranges (Poise) Spindles 01-05 | |||||
| Low torque is used for applications requiring low shear rates for low/medium viscosity fluids, an optional low torque 797-7,970 dynes•cm instrument can also be ordered. |
|||||
| CAP 2000+ @ 5-1000 rpm | .2-16 | .2-32 | .2-66 | .2-130 | .2-260 |
| CAP 2000+ HIGH Torque Cone Viscosity Ranges (Poise) Spindles 06-10 | |||||
| Cone Spindle:Sample Volume ( μ L) :
Shear Rate (sec-1): |
CAP06
30 3.3N |
CAP07
1700 2.0N |
CAP08
400 2.0N |
CAP09
100 2.0N |
CAP10
170 5.0N |
| CAP 2000+ @ 5-1000 rpm | 8-15k | .78-625* | 3.13-2.5k* | 12.5-10k* | 1-1k* |
| CAP 2000+ LOW Torque Cone Viscosity Ranges (Poise) Spindles 06-10 | |||||
| Low torque is used for applications requiring low shear rates for low/medium viscosity fluids, an optional low torque 797-7,970 dynes•cm instrument can also be ordered. | |||||
| CAP 2000+ @ 5-1000 rpm | .2-660 | .2-26 | .2-108 | .2-440 | .2-44 |
μL = microLiter N = rpm k = 1000 e.g. Cone CAP-01 13.3 x 10 (rpm) = 133 sec-1
* Maximum speed recommended with this spindle is 400 rpm. Viscosity range indicated is for operation at 400 rpm.
Note: Viscosity ranges shown are for illustration; the exact range will depend upon instrument configuration
