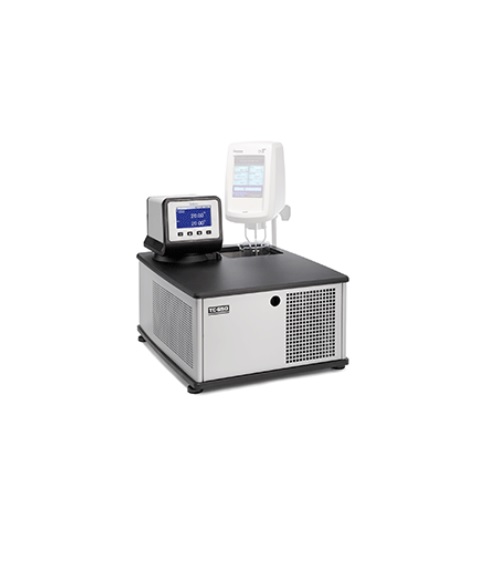

Temperature Control Waterbath

Detecting changes in your sample’s properties is valuable information for predicting your product’s performance. Temperature control during viscosity measurement helps insure accurate test results with the Temperature Control Waterbath.

Why control temperature for viscosity measurement? Detecting changes in your sample’s properties is valuable information for predicting your product’s performance. Temperature control during viscosity measurement helps ensure accurate test results. What makes the TC-550 stand out from the rest? It measures directly in the bath and operates in standalone mode.

Category:

Description

CONTROLLER FEATURES Temperature Control Waterbath

MX Series SD Series AP Series
Economical Best Value Total Touch Screen Interface
Large Character Display Programmable with PC Control using RheocalcT Software Standalone Programmable
Single Speed Pump 2-Speed Pump Variable Speed Pump
Maximum Temperature up to 135°C Quick Scroll to Set Temeprature to Standalone Mode PC Control with RheocalcT Software

FEATURES Temperature Control Waterbath

  • Provides standalone operation – no tap water required
  • Easy control of set-point
  • Configured to measure viscosity directly in the bath – accommodates 600 mL beaker
  • Programmable Controller version is designed to automate sample temperature control
  • Built-in circulator pumps to external devices

SPECIFICATIONS

TC-550 Bath
MODEL Temperature Range Low Temperature Range High Controller Cooling Temperature Stability
††
TC-550AP -20°C +200°C AP Refrigerated 0.01°C
TC-550SD -20°C +170°C SD Refrigerated 0.04°C
TC-550MX -20°C +135°C MX Refrigerated 0.07°C



TC-550 Bath
MODEL Digital Type
Resolution
(Set / Read)		 Reservoir
Capacity		 Pump
Speed		 Flow
Rate		 Internal Work Area
DxWxH (inches)		 Overall Dimensions
DxWxH (inches)		 Weight (Gross)
TC-550AP Touch Screen 7.0 liters Variable 16 LPM 6.18 x 5.59 x 5.0 23.2 x 16.2 x 16.2 90 lbs
TC-550SD LCD/Scroll Touch 7.0 liters 2-speed 11 LPM 6.18 x 5.59 x 5.0 23.2 x 16.2 x 16.2 90 lbs
TC-550MX LCD 7.0 liters 1-speed 12 LPM 6.18 x 5.59 x 5.0 23.2 x 16.2 x 17.3 84 lbs

FOR TEMPERATURES HIGHER THAN 80°C PLEASE CONTACT BROOKFIELD FOR FLUID RECOMMENDATIONS.
Note: Specify voltage and frequency when ordering.
††Temperature stability may vary depending on bath volume, surface area, insulation and type of fluid.
